Remote IDP Sign-In Logs

Console View​

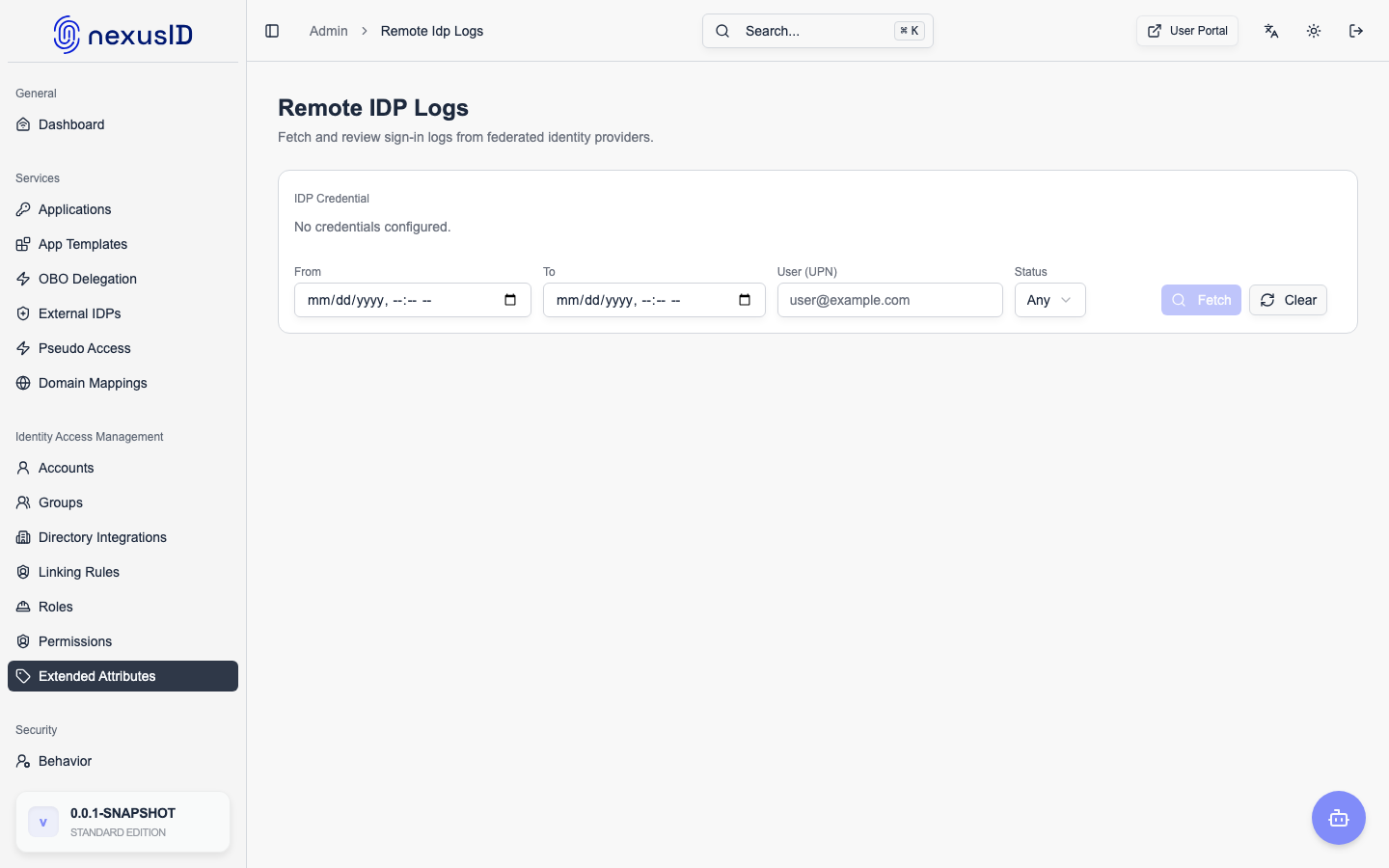

Remote IDP Logs Console

Overview​

This feature allows administrators to fetch and view sign-in logs directly from federated Identity Providers (IDPs) using their APIs. This provides visibility into authentication events at the source IDP, complementing the broker's own sign-in logs.

Supported IDPs​

Currently Implemented​

  • Azure AD / Microsoft Entra ID - Using Microsoft Graph API

Coming Soon​

  • Google Workspace (Admin SDK)
  • Okta (System Log API)
  • Auth0 (Management API)

Architecture​

┌─────────────────────┐
│  Admin Dashboard    │
│  (Broker)           │
└──────────┬──────────┘
           │
           │ Fetches logs via API
           ▼
┌─────────────────────┐
│  Federated IDP      │
│  (Azure AD, etc.)   │
│                     │
│  Sign-In Logs  ──┐  │
│  Audit Logs    ──┤  │
│  User Events   ──┘  │
└─────────────────────┘

Components​

  1. IdpApiCredential - Stores encrypted API credentials (Service Principal, API tokens)
  2. AzureAdLogFetcherService - Fetches logs from Microsoft Graph API
  3. RemoteIdpSignInLog - Unified log model for display
  4. Admin Controllers - UI for managing credentials and viewing logs
  5. Database Migration - V4 adds idp_api_credentials table

Setup Guide​

Azure AD Service Principal Setup​

Step 1: Create App Registration​

  1. Go to Azure Portal → Microsoft Entra ID → App registrations
  2. Click New registration
  3. Name: IDP Broker Log Reader
  4. Supported account types: Accounts in this organizational directory only
  5. Redirect URI: Leave blank (not needed for service principal)
  6. Click Register

Step 2: Copy Required Values​

After registration:

  1. Copy Application (client) ID - You'll need this as Client ID
  2. Copy Directory (tenant) ID - You'll need this as Tenant ID

Step 3: Create Client Secret​

  1. Go to Certificates & secrets
  2. Click New client secret
  3. Description: IDP Broker Access
  4. Expires: Choose expiration period (recommend 12-24 months)
  5. Click Add
  6. IMPORTANT: Copy the secret VALUE immediately (it won't be shown again)

Step 4: Grant API Permissions​

  1. Go to API permissions
  2. Click Add a permission
  3. Select Microsoft Graph
  4. Select Application permissions (not Delegated)
  5. Add these permissions:
    • AuditLog.Read.All - Read audit log data
    • Directory.Read.All - Read directory data
  6. Click Grant admin consent for [Your Organization]
  7. Verify status shows green checkmarks

Step 5: Verify Permissions​

Final permissions should look like:

Microsoft Graph
├── AuditLog.Read.All (Application) ✓ Granted
└── Directory.Read.All (Application) ✓ Granted

Configuring in IDP Broker​

Step 1: Navigate to API Credentials​

  1. Login to IDP Broker admin dashboard
  2. Go to IDP API Credentials (new menu item)
  3. Click Add New Credential

Step 2: Fill in the Form​

  • IDP Configuration: Select the Azure AD IDP config
  • IDP Type: Select AZURE_AD
  • Credential Name: e.g., "Production Azure AD API"
  • Tenant ID: Paste the Directory (tenant) ID from Step 2
  • Client ID: Paste the Application (client) ID from Step 2
  • Client Secret: Paste the client secret value from Step 3
  • Enabled: Check to enable immediately

Step 3: Test Connection​

  1. Click Save
  2. On the credentials list page, click Test button
  3. Should see "✓ Connection test successful!"
  4. If test fails, verify:
    • Client ID, Client Secret, and Tenant ID are correct
    • Admin consent was granted for API permissions
    • Service Principal has the required permissions

Using Remote IDP Logs​

Viewing Logs​

  1. Go to Remote IDP Logs (new menu item)
  2. Select an IDP API Credential from the dropdown
  3. Optionally filter by:
    • User Principal Name
    • Status (Success/Failure)
    • Date Range
    • Max Results (50-1000)
  4. Click Fetch Logs

Log Information Displayed​

Each log entry shows:

  • Date & Time - When the sign-in occurred
  • User - Display name and user principal name
  • Sign-In Identifier - Email used for sign-in
  • Application - Which app the user signed into
  • Status - Success/Failure with error code
  • IP Address - Where the sign-in originated
  • Location - City, state, country
  • Device - OS and browser information

Viewing Log Details​

Click Details on any log entry to see:

  • Full authentication details
  • Error codes and failure reasons
  • Device compliance status
  • Authentication methods used
  • Conditional access policies applied
  • Raw JSON from the source IDP

API Filters​

OData Filter Syntax​

The service supports Microsoft Graph OData filters:

# Recent logins (last 24 hours)
createdDateTime ge 2026-01-12T00:00:00Z

# Failed logins only
status/errorCode ne 0

# Specific user
userPrincipalName eq 'user@domain.com'

# Specific application
appId eq 'xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx'

# Combine filters with 'and'
createdDateTime ge 2026-01-12T00:00:00Z and status/errorCode ne 0

Programmatic Access​

Fetch logs via API endpoint:

GET /admin/remote-idp-logs/api/fetch?credentialId={id}&startDate={iso8601}&status=failure

Returns JSON:

{
  "success": true,
  "logs": [
    {
      "id": "...",
      "date": "2026-01-13T14:26:05Z",
      "userPrincipalName": "user@domain.com",
      "status": "Failure (50126)",
      "failureReason": "Invalid username or password"
    }
  ],
  "total": 15
}

Common Use Cases​

1. Troubleshooting Failed Authentications​

Scenario: User reports they can't sign in

Steps:

  1. Go to Remote IDP Logs
  2. Filter by user's email
  3. Filter by Status = Failure
  4. View error codes and failure reasons
  5. Check if it's:
    • Wrong password (50126)
    • MFA issue (50074, 50076)
    • Conditional access blocking (53003)
    • Account disabled/locked

2. Auditing Sign-In Activity​

Scenario: Monthly security audit required

Steps:

  1. Select date range for the month
  2. Fetch all logs (up to 1000 per request)
  3. Review success/failure ratios
  4. Identify unusual locations or devices
  5. Export raw JSON for SIEM ingestion

3. Comparing Broker vs Source IDP Logs​

Scenario: User authenticated at source IDP but broker failed

Steps:

  1. Check broker's sign-in logs: /admin/signin-logs
  2. Check remote IDP logs: /admin/remote-idp-logs
  3. Match by:
    • User email
    • Timestamp (within same minute)
    • Correlation ID (if available)
  4. Identify where the flow broke

4. Monitoring Conditional Access Policies​

Scenario: New conditional access policy causing issues

Steps:

  1. Filter logs by date (after policy deployment)
  2. Filter by Status = Failure
  3. Look for error code 53003 (blocked by conditional access)
  4. Review which users/devices are affected
  5. Adjust policy or whitelist broker IPs

Security & Compliance​

Data Encryption​

  • Client IDs and Client Secrets are encrypted using AES-256-GCM
  • Encryption key stored in SECRET_ENCRYPTION_KEY environment variable
  • Keys never exposed in logs or API responses

Access Control​

  • Only users with ROLE_ADMIN can access remote IDP logs
  • Admin actions are logged in audit logs
  • Last sync time and status tracked per credential

Data Retention​

  • Logs are fetched on-demand, not stored in broker's database
  • Each fetch is limited to 1000 records (Microsoft Graph limit)
  • For long-term retention, use Microsoft's native audit log retention or export to SIEM

Troubleshooting​

"Connection test failed" Error​

Possible Causes:

  1. Invalid Client ID, Client Secret, or Tenant ID
  2. Admin consent not granted
  3. Service Principal doesn't have required permissions
  4. Tenant ID doesn't match the IDP configuration

Solutions:

  • Verify credentials in Azure Portal
  • Re-grant admin consent for API permissions
  • Wait 5-10 minutes after creating Service Principal (propagation delay)
  • Check broker logs for detailed error messages

"No logs found" Result​

Possible Causes:

  1. No sign-in events in the specified time range
  2. Filters too restrictive
  3. IDP's audit log retention period expired
  4. Service Principal has permission but no data available yet

Solutions:

  • Widen date range
  • Remove filters and search all logs
  • Check Microsoft Entra ID sign-in logs in Azure Portal directly
  • Verify the IDP tenant has active users signing in

"Error Code 50126" in Logs​

Meaning: Invalid username or password

Common Reasons:

  • User entered wrong password
  • User account password expired
  • Account disabled or locked
  • Username doesn't exist

Action: Have user reset password or unlock account

"Error Code 53003" in Logs​

Meaning: Blocked by conditional access policy

Common Reasons:

  • User's location not in allowed locations
  • Device not compliant or managed
  • MFA not satisfied
  • Application not allowed

Action: Review conditional access policies in Azure Portal

API Reference​

Microsoft Graph API Used​

GET https://graph.microsoft.com/v1.0/auditLogs/signIns

Query Parameters:

  • $top - Max records (1-1000, default 100)
  • $skip - Pagination offset
  • $filter - OData filter expression
  • $orderby - Sort order (default: createdDateTime desc)

Required Permissions:

  • AuditLog.Read.All (Application)
  • Directory.Read.All (Application)

Documentation: https://learn.microsoft.com/en-us/graph/api/signin-list

Broker API Endpoints​

# Admin UI
GET  /admin/idp-api-credentials              # List credentials
GET  /admin/idp-api-credentials/new          # New credential form
POST /admin/idp-api-credentials/create       # Create credential
GET  /admin/idp-api-credentials/{id}/edit    # Edit credential form
POST /admin/idp-api-credentials/{id}/update  # Update credential
POST /admin/idp-api-credentials/{id}/delete  # Delete credential
POST /admin/idp-api-credentials/{id}/test    # Test connection

GET  /admin/remote-idp-logs                  # View logs UI
GET  /admin/remote-idp-logs/detail           # Log detail view

# API (JSON)
GET  /admin/remote-idp-logs/api/fetch        # Fetch logs as JSON

Future Enhancements​

Planned Features​

  1. Scheduled Log Sync - Automatically fetch and store logs periodically
  2. Alerting - Email/Slack alerts on failed sign-ins or anomalies
  3. SIEM Integration - Export to Splunk, ElasticSearch, Azure Sentinel
  4. Google Workspace Support - Fetch logs from Google Admin SDK
  5. Okta Support - Fetch logs from Okta System Log API
  6. Aggregated Dashboard - Combined view of broker + all IDP logs
  7. User Timeline - See complete authentication journey for a user

Contributing​

To add support for a new IDP type:

  1. Create model class for the IDP's log format (similar to AzureAdSignInLog.kt)
  2. Create service class implementing log fetching logic (similar to AzureAdLogFetcherService.kt)
  3. Add new IdpType enum value
  4. Update admin controllers to handle the new IDP type
  5. Create UI templates if needed
  6. Add documentation for setup

Support​

For issues or questions:
